Gland Packing: Technical Product Description

Gland packing is an essential sealing material used in industrial pumps, valves, mixers, and rotating equipment. It helps control fluid leakage around moving shafts and valve stems. In addition, gland packing supports reliable equipment operation by reducing fluid loss and protecting machinery against contamination.

It is commonly manufactured from braided graphite, PTFE, aramid fibre, carbon fibre, or other specialised materials. Each material offers different levels of chemical resistance, temperature tolerance, friction, and mechanical strength. Therefore, selecting the correct gland packing depends on the operating conditions and the type of equipment.

Main types of gland packing

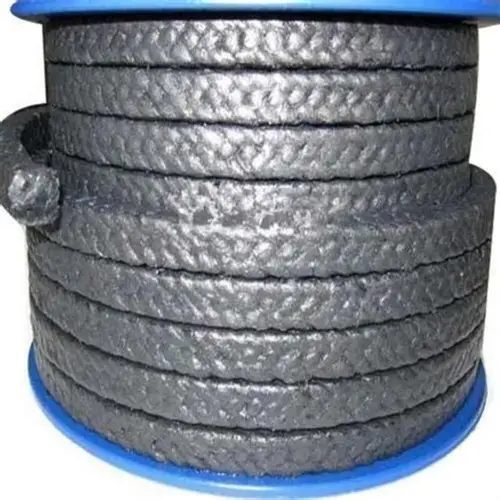

1. Graphite gland packing: Designed for suitable high-temperature applications, including steam valves, boiler systems, and hot oil equipment.

2. PTFE : Offers low friction and strong chemical resistance. It suits compatible chemical pumps, valves, and selected food-processing equipment.

3. Aramid fibre: Provides high mechanical strength and abrasion resistance. Consequently, it works well in slurry pumps, wastewater systems, and abrasive-fluid applications.

4. Carbon fibre: Offers thermal stability and good wear resistance for selected industrial pumps and process equipment.

5. PTFE and aramid combination packing: Combines low-friction sealing with reinforced abrasion-resistant corners for demanding pump applications.
   Technical characteristics and benefits

It offers several practical benefits for industrial maintenance. First, technicians can replace worn packing without necessarily replacing the entire sealing assembly. Furthermore, its flexible construction allows it to conform to the stuffing box and shaft when correctly installed.

It also provides a practical sealing solution for manufacturing plants, water treatment facilities, chemical processing industries, boiler systems, and general engineering operations. However, the actual performance depends on the packing material, braid construction, lubrication, and operating conditions.

Applications

Industrial users install gland packing in:

• Centrifugal and reciprocating pumps.

• Gate, globe, and other compatible industrial valves.

• Boilers and steam distribution systems.

• Mixers, agitators, and processing machinery.

• Water treatment and wastewater equipment.

• Chemical transfer pumps and industrial fluid systems.

• Marine equipment and general manufacturing machinery.

Available sizes and selection criteria

Gland packing commonly comes in square or rectangular cross-sections. Depending on the manufacturer, typical sizes include 6 × 6 mm, 8 × 8 mm, 10 × 10 mm, 12 × 12 mm, and larger dimensions. Confirm the actual size range with your supplier.

Before purchasing, check the shaft or valve stem dimensions, stuffing box clearance, operating pressure, temperature, shaft speed, and the fluid being sealed. In addition, confirm chemical compatibility and any food-grade or other certification requirements.

Meanwhile, proper installation is equally important. Excessive tightening can generate heat and accelerate shaft wear. Conversely, insufficient compression can cause excessive leakage. Therefore, follow the equipment manufacturer’s installation instructions and the packing supplier’s technical data sheet. Some pump applications require controlled leakage for lubrication and cooling.

Product specification: it is available in different materials, cross-sections, and grades for industrial sealing applications.  Also, operating limits vary by product, so verify the manufacturer’s specifications before use.
